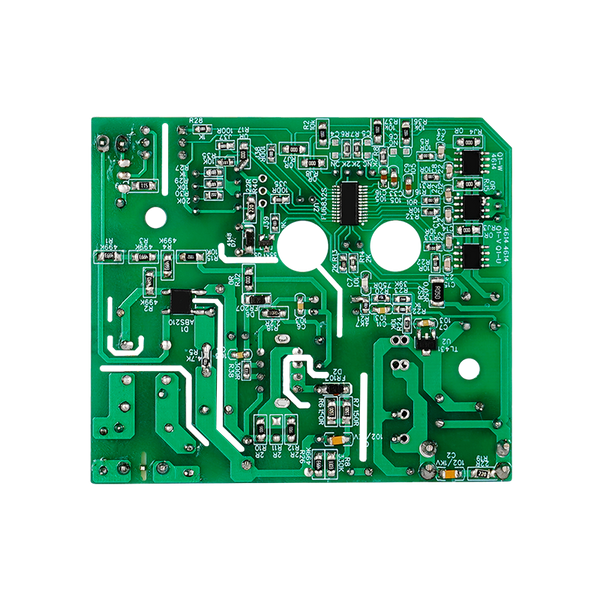

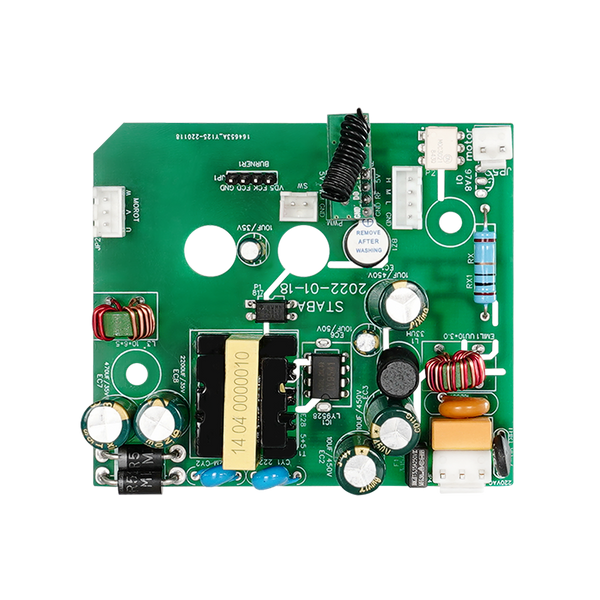

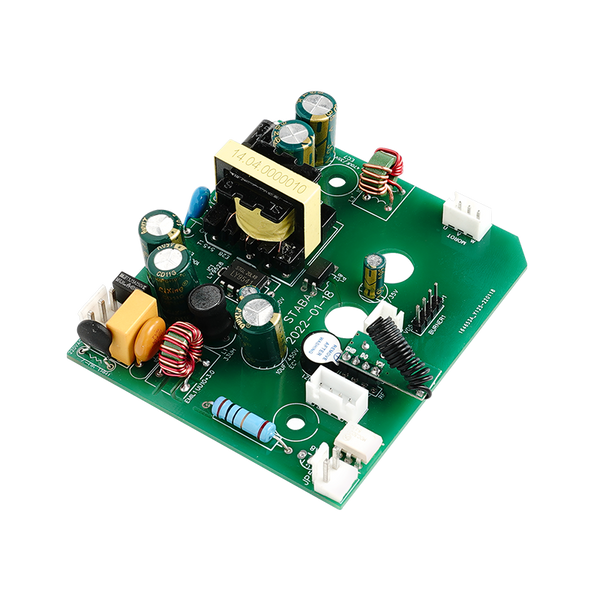

Over 3 years we investigate different type of wall fan/stand fan/table fan in different countries, and finally present the Xuperb T series BLDC TPW fan driver, with the best performance and price value. Our exclusive algorithm and application technology guarantee satisfaction of end users.
● FOC technology
● 8 bits professional MCU for faster calculation
● Wide AC input range from 70Vac to 275Vac
● 12Vdc/24Vdc/hybrid version available
● CW/CCW optional
● Oscillation angel control
● up to 32 speeds
● Maximum power up to 60 watts
● Power factor correction ready
● Voice control/Alexa ready
● IR/FR remote control options
| Applications | TPW Fan | Ceiling Fan | Ventilation | Mxier/Boat Propeller | Blender |
| Power | 10~40 Watts | 28~80 Watts | 80~600 Watts | 200~1200 Watts | 500~1500 Watts |
| Max RPM | 1350 | 390 | 3000 | 9000 | 18000 |
| Power Supply | Yes | No | |||
| Battery | Optional | N/a | Optional | N/a | |
| Solar | Optional | N/a | |||
| Series | XT | XC | XV | XM | XB |
| Technology | FOC/with Hall | ||||
| PFC | Optional | ||||
| Output waveform | Pure Sinewave Tri-phase | ||||
| Protection | Over voltage/ Low voltage/ Over current/ Over temperature/ Over speed optional | ||||
